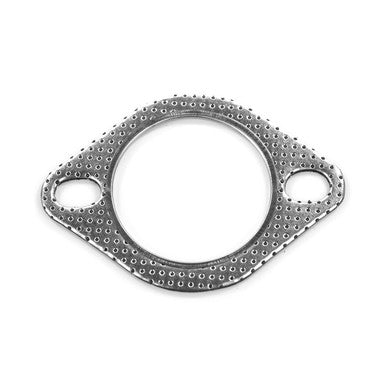

Exoracing 2 Bolt Composite Exhaust Gasket

Why Use An Exoracing 2 Bolt Composite Exhaust Gasket?

When fitting an exhaust, you will always have to use a gasket to connect two pipes and stop exhaust gases from leaking. This is where our 2-bolt composite gaskets come in. In two of the most common, widely used sizes, there is a gasket for nearly every exhaust system.

Exoracing 2-bolt composite gaskets are graphite-coated and constructed from 2 perforated metal sheets with a high-temperature/pressure carbon layer in the centre. Being made to OEM specs guarantees a perfect fitment between flanges.

Our composite gaskets are constructed from multiple layers, allowing a better seal between flanges with imperfections present and conforming to any defects.

Gaskets are used in automotive applications to seal two flanges together, such as turbo to the manifold, to create a tight seal without leakage.

When gaskets are worn or split, they can leak exhaust gas, which will cause a loss of power! We highly recommend resurfacing flanges with blown or distorted gaskets for an optimal seal.

Exhaust gaskets are used as two mating faces on an exhaust system that is never perfectly flat and will always allow some gas to leak out. Gas leaking out of your exhaust system is not only an MOT fail in the UK. Still, it can also enable dangerous gasses into the cabin, causing the engine to lose power and efficiency!

These are just a few reasons to ensure you're using the best gaskets possible when doing exhaust work on your vehicle.

Also, as a bonus, we now include an Exoracing lifetime warranty against manufacturing defects, so you know you are getting a great product and have a risk-free buying experience.

Purchase Includes:

• 1 x Exoracing 2 bolt aluminium composite gasket
• 1 x Exoracing lifetime warranty

Features:

• High-pressure carbon between aluminium composite sheets for a tight seal
• 1.8mm Thick to help seal the flange
• Aluminium inner ring to increase strength
• Will fit a 2 bolt exhaust flange
• Fixes boost or exhaust leaks from worn or split gaskets
• Available in a 2", 2.5" or 3" bore
• Exoracing lifetime warranty

Exoracing 2 Bolt Composite Exhaust Gasket Installation Guide:

Follow our quick and easy step-by-step guide below to get up and running with your new exhaust gasket as quickly as possible. However, if you are unsure about any of the steps below, then please get in touch with a professional who will be able to install it for you.

1. First, ensure the exhaust is cool to the touch to reduce the risk of burns and take any other necessary safety precautions.
2. Next, remove the two nuts and bolts holding the two exhaust pipes together and remove the old blown gasket.
3. Check to ensure that both exhaust flanges are flat and are meeting at a perfectly flat angle. If either of these steps isn't taken, the gasket will likely blow out or leak.
4. Slide the new Exoracing gasket in place and install the two nuts and bolts in reverse order to how you removed them.
5. Torque the nuts and bolts to the factory specification.
6. You are all done! Remember to tag us with any photos of your build on social media; we would love to see them! #exoracinguk

Technical Specifications:

Frequently Asked Questions:

Can I Reuse My Old Gasket?

You can if the gasket is still in perfect condition, but we always advise changing them out as they can become brittle and deformed under multiple heat cycles.

How Do I Make Sure I Get The Correct Gasket?

Please check the dimensions table above; this should provide all the information you need to ensure fitment. If you are not sure, please contact us, as we can help you get the correct gasket.

Notes:

• Professional installation is always recommended.
• Please ensure the exhaust flanges are flat to guarantee a leak-free seal.
