Exoracing Gold and Silver Heat Reflective Sheet 1m x 1.2m

Why Use Gold or Silver Heat Reflective Sheet?

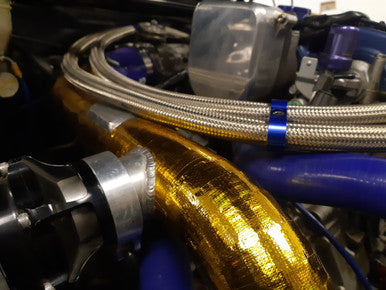

Applying our Exoracing heat reflective sheet to air intake pipework can reduce the temperature of the air being fed into your engine, improving overall performance and making it an essential addition to any performance car.

This reduction in intake air temperatures will increase the density of air going into the engine, resulting in a larger bang in the combustion chamber.

Our heat-reflective sheet can reflect up to 80% of radiant heat, which is crucial in managing the temperatures affecting your car.

Our range of heat reflective sheet barriers are constructed using a lightweight polymer laminated glass cloth, making them durable and reliable. They are designed to withstand temperatures up to 1100 degrees Celsius, making them ideal for use in demanding motorsport applications such as drifting or drag racing.

Despite its exceptional performance, our reflective heat shield is still incredibly lightweight, ensuring that it doesn't add unnecessary weight to your vehicle.

Our heat reflective tapes and sheets are popular choices among racing enthusiasts. They have a pressure-sensitive adhesive backing that is easy to apply and remove.

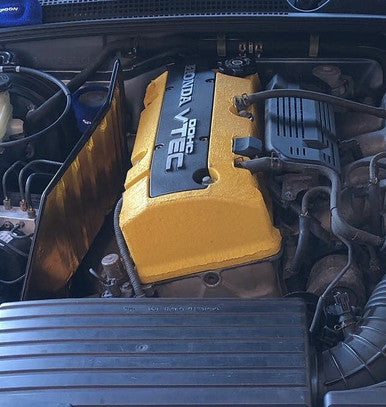

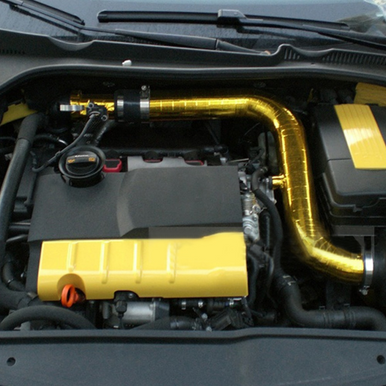

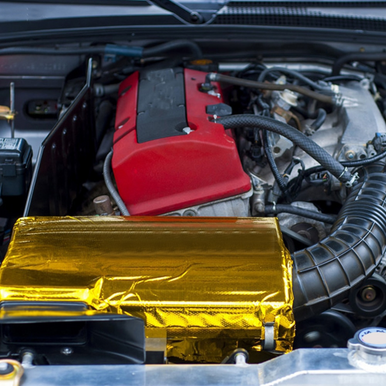

The gold or silver tapes and heat sheets are highly conformable, making them suitable for hundreds of applications, including engine covers, seat bottoms, bulkheads, fuel cells, intercooler piping, radiators, and more. They require minimal clearance as the sheets are incredibly thin, ensuring they can be applied in even the tightest spaces.

In summary, our reflective heat shield barriers, reflective sheets, and tapes are a great solution for anyone looking to improve the heat management of their motorsport or road vehicle. With exceptional durability, lightweight construction, and reflective capabilities, our products are a must-have for any serious enthusiast.

Purchase Includes:

• 1 x Exoracing 1mx1.2m gold or silver heat reflective sheet
• 1 x Exoracing Lifetime Warranty

Features:

• It can reflect up to 80% of radiant heat
• Protects engine bay components
• Reduces intake air temperatures
• Can be used on a huge range of surfaces
• Gold or silver reflective foil face to aid with radiant heat dissipation
• Length and Width: 1mx1.2m
• Maximum continuous Temperature: 850°F/450°C
• Maximum intermittent Temperature: 2000°F/1100°C
• Installation is quick and easy, being self-adhesive
• Exoracing Lifetime Warranty

Heat Reflective Sheet Installation Guide:

When installing our heat reflective sheet, the process is relatively straightforward; follow the easy 6-step guide below:

1. Make sure to thoroughly clean the surface when you are applying the gold or silver heat sheet. Any residue, such as oils, brake fluid, etc., can cause the self-adhesive glue to break down and not have the long-lasting application you want. A good product to use here is isopropol alcohol, as it will remove most residues that appear in engine bays.
2. Cut the reflective heat sheet to the desired size, which is easily done using scissors or any bladed cutting tool.
3. Peel off the backing paper to reveal the self-adhesive pressure glue on the back of the gold reflective sheets.
4. Line up the sheet with the area you wish to apply to, apply pressure with either your fingers or a tool such as a roller, and press firmly to activate the pressure glue.
5. You are now finished with the application, but we also offer this product in rolls for ease of use for piping, such as intercooler or intake piping.
6. If you need to clean the reflective once it is installed, use a cleaning spray such as glass cleaner to remove dirt or debris.

We have written a full installation guide for heat-reflective tape and sheets. This guide includes images of every step and a video if you would rather watch the installation process.

Just click the link here to head over to our installation page:

Heat reflective tape installation guide

Technical Specifications:

Notes:

• The gold and silver heat reflective sheet is rated at 850°F/450°C continuous but can handle intermittent spikes of 2000°F/1100°C
• Do not try to install it on porous surfaces, such as powder-coated intakes, as the glue has been designed to be installed on non-porous surfaces, such as bare aluminium or stainless.
