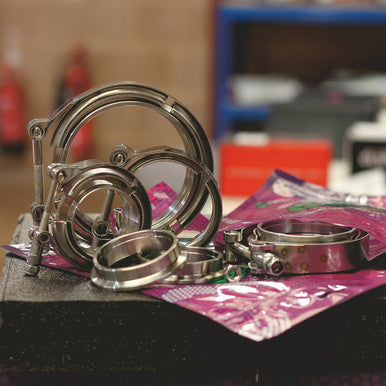

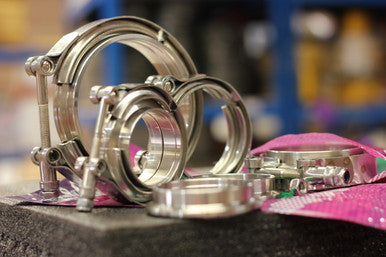

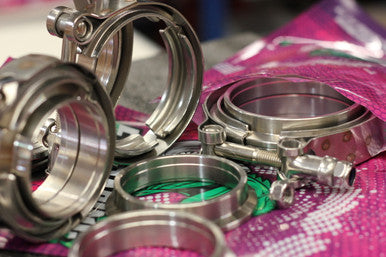

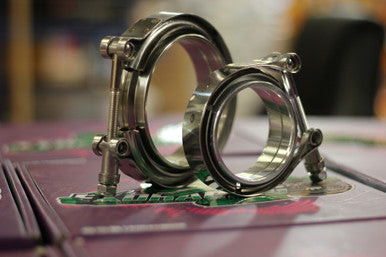

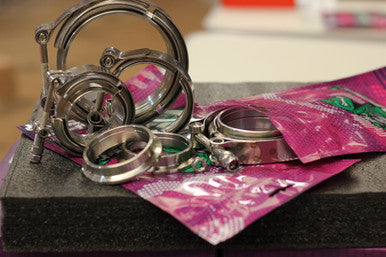

Exoracing Stainless Steel V-Band Clamp With Flanges

Why Should You Use A V-band Clamp?

Our Exoracing self-aligning V-band clamps are a highly efficient solution for fabricators who require a robust and leak-free method for building exhaust, intercooler, intake, and turbo systems.

Traditional exhaust or turbo piping methods are joined with two flanges, a gasket, and bolts, which is very inefficient and requires replacing the gaskets and/or bolts every time they are removed.

V-Band clamps completely solve this as the flanges act as the gasket, which will never need to be replaced. The fact that they are self-aligning is another bonus: You never need to worry about the flanges being off-centre or leaking.

We offer male and female self-aligning V-band clamp flanges to simplify exhaust system installation and make installation and removal quick and easy.

To install, all you need to do is weld both sides to your desired piping, install the v-band clamp in the centre, and screw on the locking nut for a perfect seal every time.

The V-band exhaust flanges are incredibly convenient for removing and fitting exhaust systems and turbo parts, such as downpipes and B Pipes.

These exhaust clamps are specifically designed for racers and track day enthusiasts because they facilitate easy part removal. They allow quick and hassle-free access to vital components without requiring hard-to-reach bolts or special tools.

The V-band exhaust clamp's locking nut enables quick and easy undoing of the V-band. As the flanges fit together perfectly and lock tightly, there is no need for a gasket, thus eliminating the risk of it blowing out—a prevalent issue with most other exhaust products.

The V-band clamp ensures that your exhaust system remains secure and leak-free, providing a safe and reliable solution for all your exhaust and turbo system needs.

Purchase Includes:

• 1 x Exoracing V-band Clampp
• 1 x Exoracing Male V-band Flange
• 1 x Exoracing Female V-band Flange
• 1 x Exoracing Locking Nut
• 1 x Exoracing Lifetime Warranty

Features:

• Machined from 304-grade Stainless Steel to resist corrosion
• Includes counter-bored male and female V-band flanges
• Self-aligning flanges for ease of use
• Reduces the risk of broken exhaust bolts
• Never worry about a gasket blowing out again
• Quick and simple to install and remove
• It provides a leak-free seal every time
• Includes a locking nut to keep a perfect seal at all times
• Perfect for intercoolers, exhausts, intakes, and turbochargers
• Exoracing Lifetime Warranty

Exoracing V-Band Clamp Installation Guide:

Although we would always recommend using a professional for welding, if you are a competent welder, these are the steps you would need to follow to install a V-Band clamp:

1. First, you will want to ensure you have purchased the correct ID of the clamp by offering up a flange against the pipe you wish to weld it to. Once you are happy that they are the same inside diameter and offer the highest exhaust flow, you can move on to step 2.
2. Ensure both the pipes you are welding to are stainless steel and are clean, and free from rust or other contaminants.
3. Weld the male flange to one pipe and the female flange to another.
4. Remove the locking nut from the V-band clamp and place it over both flanges, ensuring they align correctly. There are lips on both flanges, so you will feel as soon as they lock together.
5. Close the clamp and tighten the locking nut, ensuring it is in the correct orientation so it does not rub against any other components.

If you are unsure about welding or how to install the V-band clamp, please get a professional to install it for you.

Technical Specifications:

Weight and Dimensions:

Notes:

• Professional installation is recommended.
• Please make sure you know the correct size you need before ordering.
